Large Tool Change System

Fast Tooling Change | High Precision | Small Batch Production

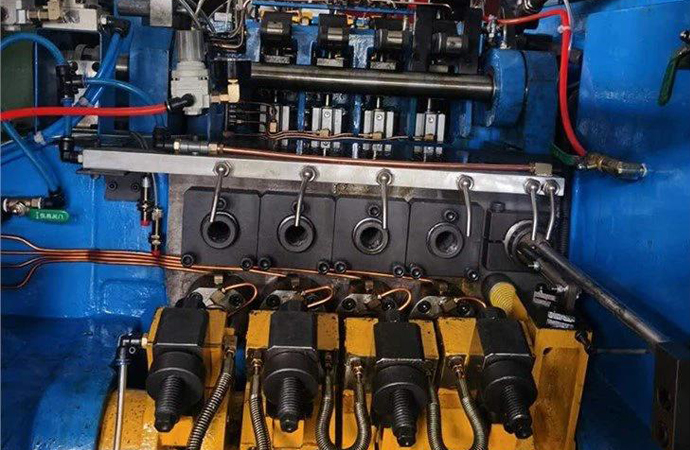

Large Tool Change System is specially designed for high-speed multi station cold forging machine, enabling rapid and accurate tool replacement for continuous industrial manufacturing.

Key Features of the Large Tool Change System

1. Ultra-Fast Tool Replacement

The punch block and die block can be exchanged simultaneously within about 3 minutes, greatly improving production efficiency and reducing downtime during tooling changes.

2. Preset Pallet Magazine Design

Up to 6 sets of punch blocks and die blocks can be preset in the pallet magazine system. Operators can quickly switch between different tooling configurations for flexible manufacturing requirements.

3. Ideal for Small Batch & Multi-Product Production

The system is especially suitable for:

• Small quantity batch production

• High-mix fastener manufacturing

• Precision bolt and screw forming

• Customized metal parts production

4. Improved Production Accuracy

The automatic positioning structure helps maintain high tooling alignment accuracy during replacement, ensuring stable product quality and repeatable forming precision.

Compatible with High-Speed Bolt Forming Machines

This tool change technology is widely used in:

• Bolt forming machines

• fasteners machine

Hybrid Tool Change System

Our Hybrid Tool Change System provides even greater flexibility for cold forming production lines. The punch side and die side can be replaced either simultaneously or individually according to different production requirements.

This flexible tooling replacement design helps manufacturers optimize production scheduling, reduce maintenance time, and improve machine utilization efficiency.

Advantages of the Hybrid Tool Change System

• Flexible replacement for punch and die systems

• Reduced machine downtime during tooling maintenance

• Improved efficiency for multi-specification fastener production

• Suitable for precision cold forging and bolt manufacturing

• Enhanced adaptability for customized forming applications

Why Fast Tool Change Technology Matters

In modern fasteners manufacturing, reducing non-productive machine downtime is critical for improving profitability. Traditional manual tool replacement often requires long setup times and increases the risk of positioning errors.

Shinetop’s intelligent tool change systems help manufacturers:

• Increase overall equipment efficiency (OEE)

• Reduce labor intensity

• Improve production flexibility

• Support small-batch customized manufacturing

• Enhance high-speed cold heading productivity
