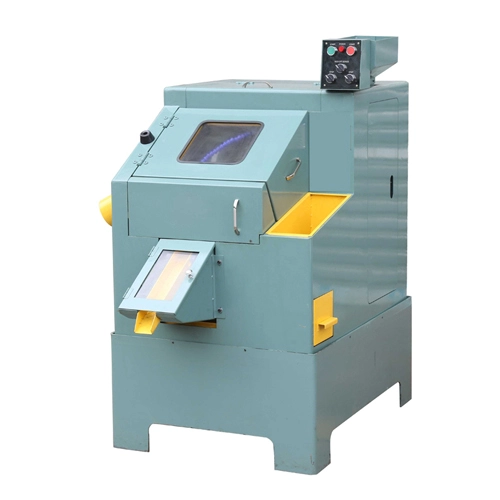

The ST-4A-25 High-Speed Thread Rolling Machine excels in producing threads for diameters ranging from φ1.2 to 4.0 mm and lengths up to 20 mm. With a remarkable output of 400-480 pieces per minute, it features robust die dimensions and a 1.5-4 kW main motor. Compact and efficient, this machine weighs 700 kg and measures 1400x800x1360 mm, making it an ideal choice for industries requiring high-speed, precise threading operations.
| Model | ST4A-25 |
| Thread Dia (mm) | φ12~4.0 |
| Thread Length (mm) | 20 |
| Output Per Min | 400~480 |
| Die Dimensions (mm) | 65 (80) x20x25Height |
| Main Motor (kw) | 1.5-4 |
| Pumpr Motor (kw) | 0.37 |
| Net Weight (kg) | 700 |
| Dimensions (mm) | 1400x800x1360 |
Note: Rotary hopper and vibrator are optional parts.
