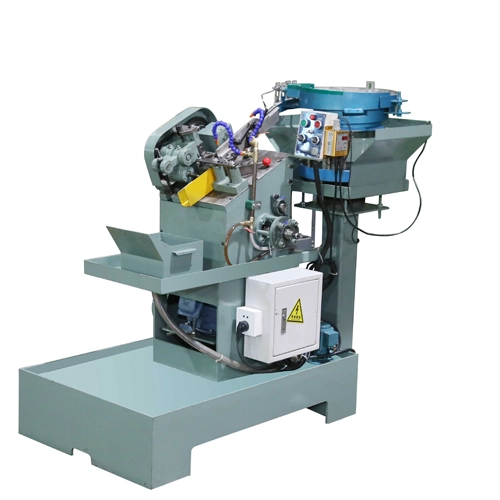

The ST-3 High-Speed Thread Rolling Machine is designed for precision and efficiency. It features a 38 mm stroke and delivers an impressive output of 260x140 pieces per minute. Equipped with a main die of φ20x35 mm, a cut-off die diameter of φ13.5 mm, and two punch dies of φ18 mm each, it ensures high-quality threading. Ideal for high-volume production, it combines robust performance with ease of operation.
| Model | ST-3 |
| Screw Dia (mm) | Φ0.6~3 |
| Screw Length (mm) | 1-22 |
| Stroke | 38 |
| Output Per Min | 260x140 |
| Main Die (mm) | φ20x35 |
| Cut-off Die Dia (mm) | φ13.5 |
| Punch Die (1st) (mm) | Φ18 |
| Punch Die (2nd) (mm) | φ18 |
| Motor (kw) | 1.1 |
| Oil Pump (kw) | 0.38 |
| Net Weight (kg) | 700 |
| Dimensions (mm) | 1400x1750x85 |
